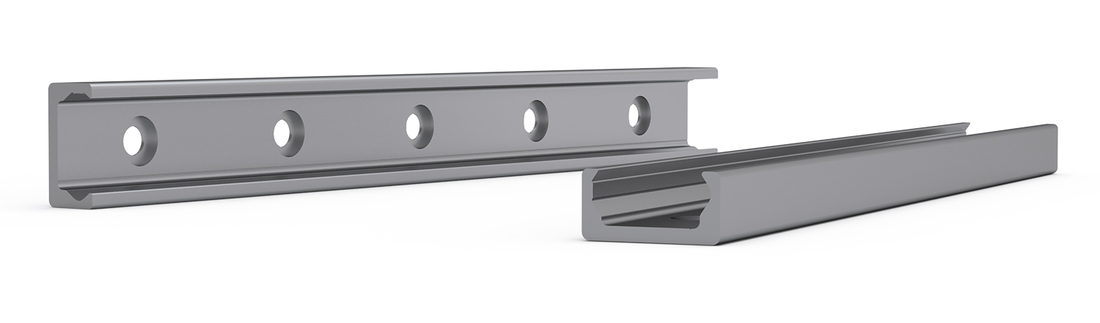

K-Rail

STOCK ITEM
The compensation rails are used for the load carrier of radial and axial forces. Tolerance compensation in two planes in combination with the U-rail. A combination of compensating rail and floating rail (K+U system) manages both parallel deviations and angular errors. The unique raceway contour of the K-rail allows the slider a certain rotation around its longitudinal axis, with the same linear precision as with a T-rail. The K-rail must be mounted in such way that the radial load of the slider is always supported by at least 2 rollers on the slider, which lie on the V-shaped raceway of the rail.

The rails are available in 2 different sizes: 43, 63 mm.

Longer single rails up to max. 4080 mm on request. For longer rail systems, see section ”Joined rails” in Technical Information.

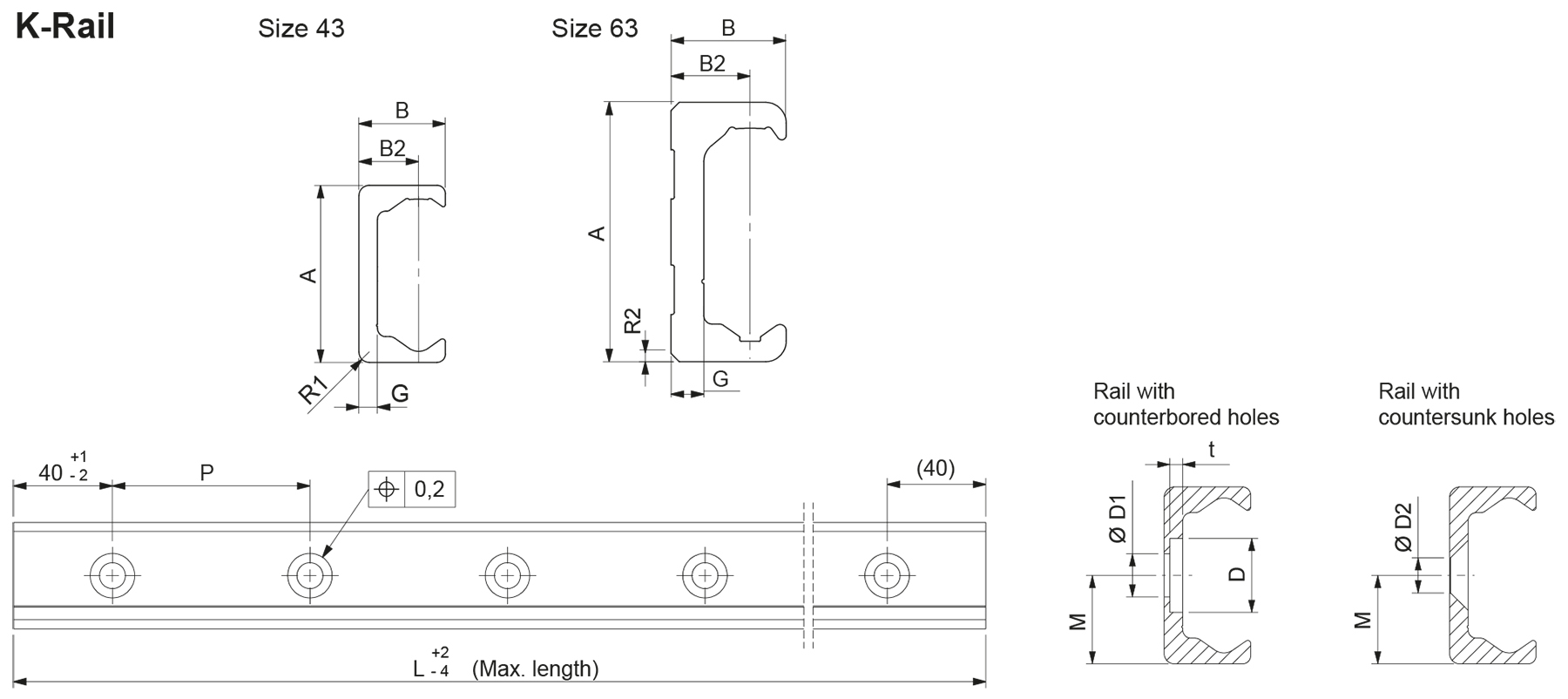

Dimensions in mm.

D1 Fixing holes for Torx® screws with low head (custom design) included in scope of supply.
D2 Fixing holes for countersunk head screws according to DIN 7991.
Download PDF

Product Information

Max. operating speed: 9 m/s (depending on application)
Max. acceleration: 20 m/s² (depending on application)
Max. radial load capacity: 15,000 N (per slider)
Temperature: -20 °C to +120 °C
Material: Cf53. Zinc-plated according to ISO 2081. Rail raceways are induction hardened and ground.
Technical Drawing
Designation Select all Lead Time * Size
1 43
Compare
Get quote
1 43
Compare
Get quote
1 63
Compare
Get quote
1 63
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all M A B B2 R1 R2 L D D1 D2 t G P Min. length Weight Rail
21,50 43 21 14,50 2,50 - 3600 18 M8 M8 3,10 4,50 80 400 2.6 kg/m
Compare
Get quote
21,50 43 21 14,50 2,50 - 3600 18 M8 M8 3,10 4,50 80 400 2.6 kg/m
Compare
Get quote
31,50 63 28 19,25 - 2x45° 3600 15 M8 M10 5,20 8 80 560 6.0 kg/m
Compare
Get quote
31,50 63 28 19,25 - 2x45° 3600 15 M8 M10 5,20 8 80 560 6.0 kg/m
Compare
Get quote
