Rollers CPN-CPA
Prismatic roller for T- and U-rail

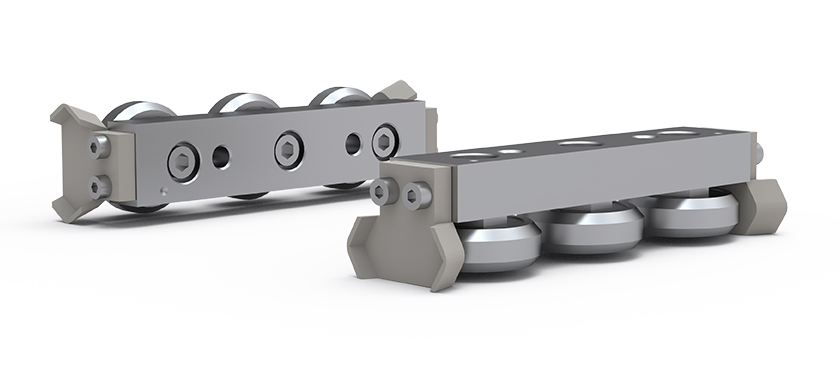

Slider CSW/CSWK
Constructed with zinc-plated steel body and sturdy wipers made of polyamide. Available for all sizes. Depending on the load requirement, slider is configurable with up to six rollers.
Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
The CSWK-sliders, which are made for rail type K, have rollers with circular cross profile. The main load direction should always be on the largest number of the slider-wheels and those wheels should always run on the V-shaped raceway of the K-Rail. So for a typical slider with 3 wheels, the two outer wheels should carry the majority of the load and run in the V-shape and the third (middle) wheel should run on the flat raceway in the K-Rail.
For CSW/CSWK-sliders, the wipers are delivered un-assembled and need to be correctly oriented and assembled. For wipers for K-rails it is especially important that the wipers are laterally adjusted to the rail. In cases when a complete system of rail + slider(s) is ordered, wipers are already assembled, oriented, and adjusted to the rail.

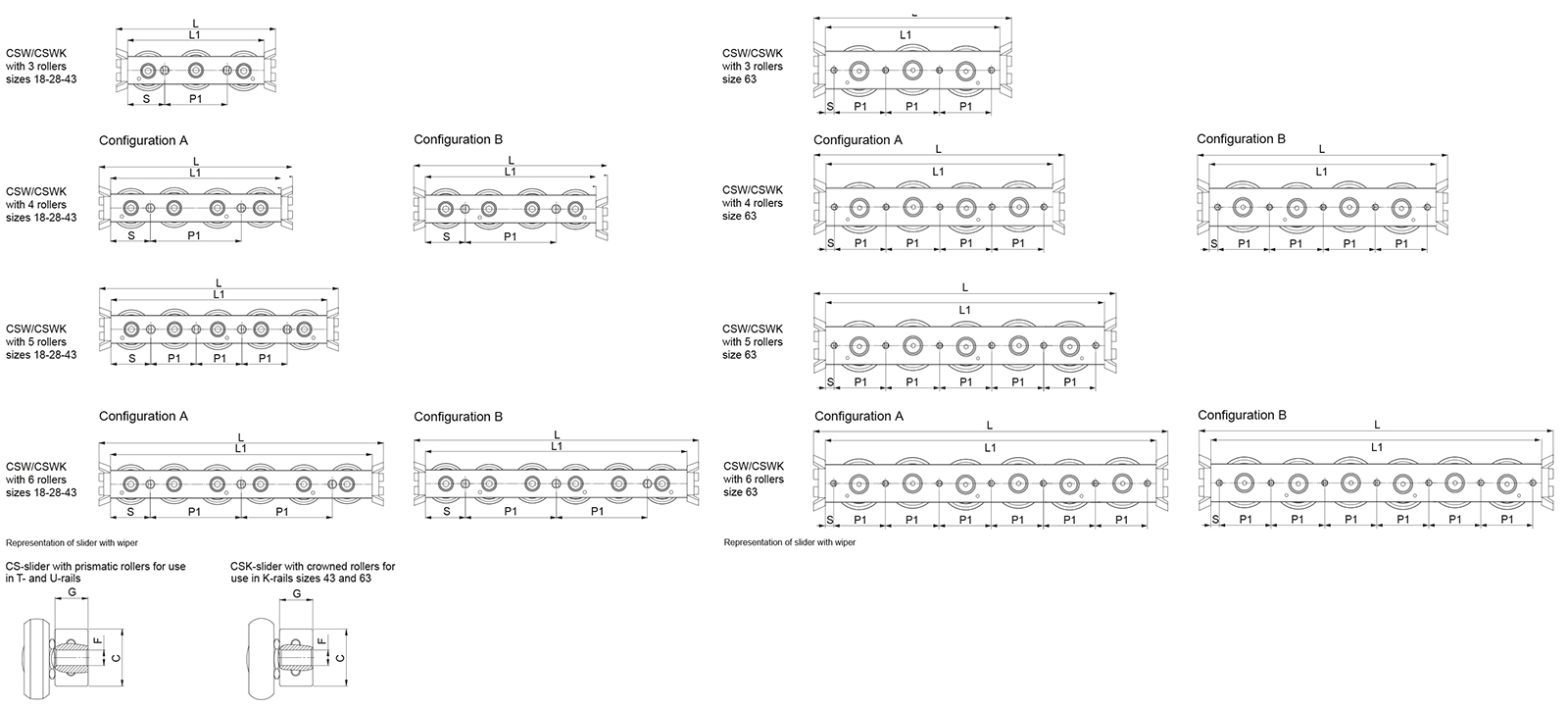

Dimensions in mm.
Read more
Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
The CSWK-sliders, which are made for rail type K, have rollers with circular cross profile. The main load direction should always be on the largest number of the slider-wheels and those wheels should always run on the V-shaped raceway of the K-Rail. So for a typical slider with 3 wheels, the two outer wheels should carry the majority of the load and run in the V-shape and the third (middle) wheel should run on the flat raceway in the K-Rail.
For CSW/CSWK-sliders, the wipers are delivered un-assembled and need to be correctly oriented and assembled. For wipers for K-rails it is especially important that the wipers are laterally adjusted to the rail. In cases when a complete system of rail + slider(s) is ordered, wipers are already assembled, oriented, and adjusted to the rail.
Dimensions in mm.
Product Information
Material: DIN 11SMnPb28. Zinc-plated according to ISO 2081.
Max. Radial Load Capacity (N): 15,000 (per slider)
Temperature range (°C): -20 to +120
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Size | Max. Speed (m/s) | Max. Acceleration (m/s) | Roller type | Number of rollers | Number of Fixing Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
