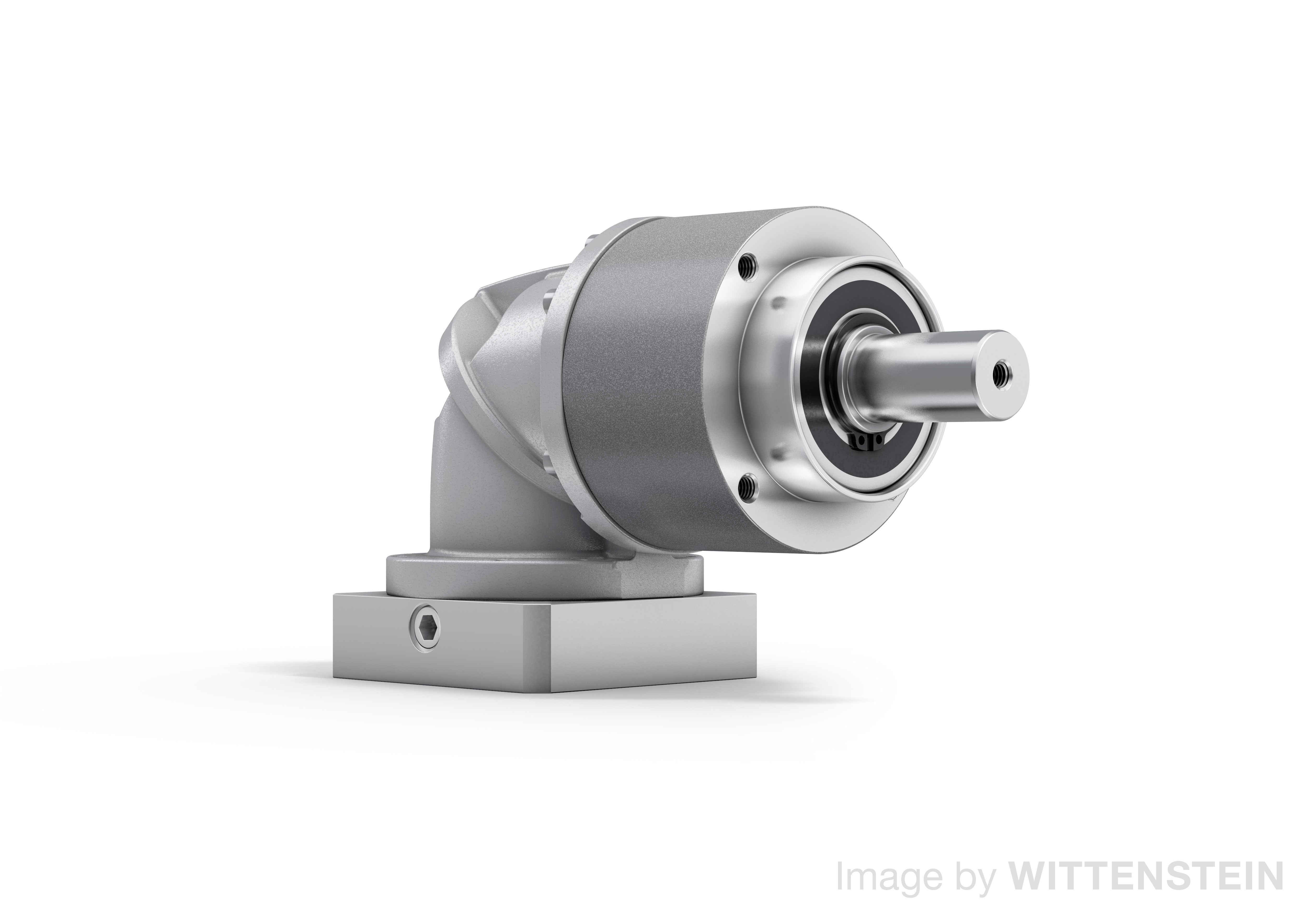

CPSK bevel gearbox

COMBINE WITH LINEAR UNIT RHL NEW
The right-angle gearboxes of the alpha Basic Line are specially designed for applications with medium requirements for positioning accuracy. The extremely compact bevel gear stage enables use in applications with space constraints.
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Ratio: 3-100
Max. Torque (Nm): 33-272
Other models: food-grade lubrication
Designation Select all Lead Time * Remark Size Ratio
2 Compatible with Linear unit RHL80 + Adapter kit RHL80 015 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Get quote
2 - 025 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Get quote
2 Compatible with Linear unit RHL110 + Adapter kit RHL100 035 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
