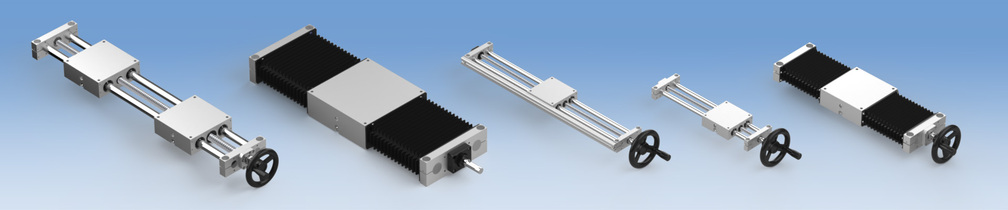

Lineaariyksikkö QME

Ruuvivetoinen lineaariyksikkömme QME on valmis kompakti kokonaisuus jossa lineaaripöytä kulkee kuulaholkeilla tuettuna karkaistuilla pyöröjohteilla. Ruuviksi voi valita joku kuularuuvin tai trapetsiruuvin.

LOCALLY MANUFACTURED

Linear Unit QME- standard version

Ready to mount linear tables guided w. linear ball bearings,shafts and driven by ball- or lead-screw
LOCALLY MANUFACTURED

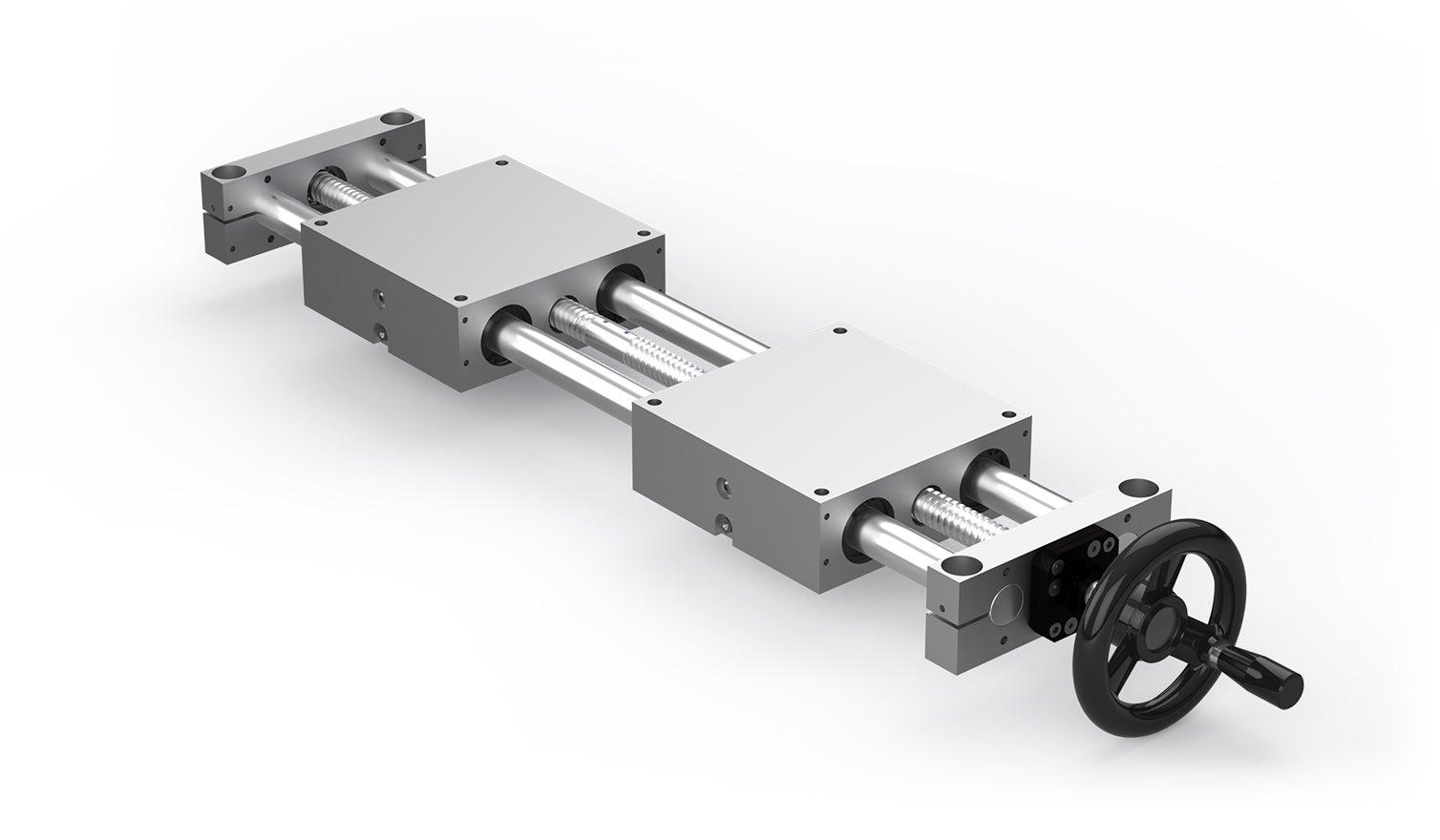

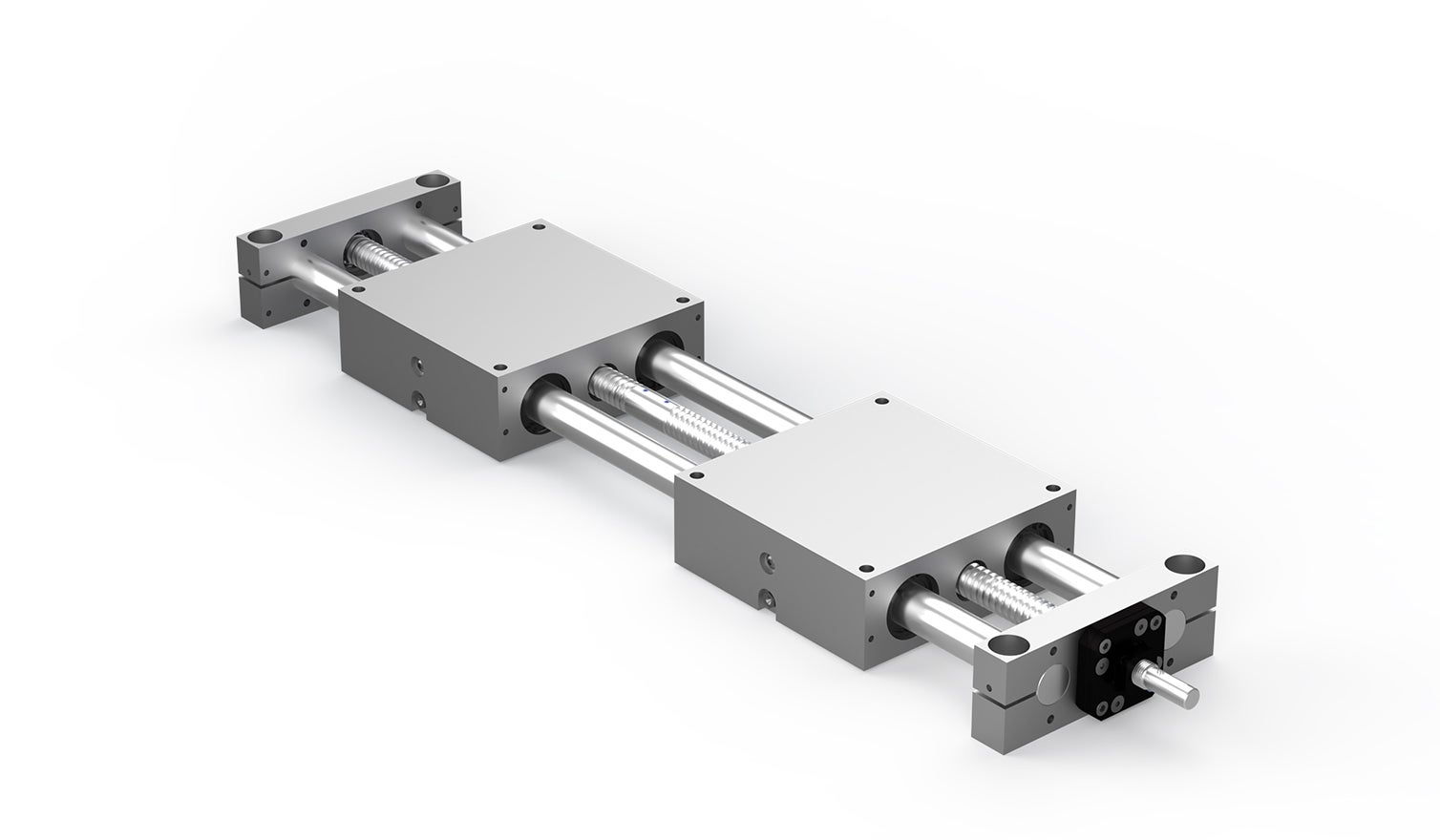

Linear Unit QME Right + Left drive

Ready to mount linear tables guided with right + left drive
Hand wheel

For Linear unit QME

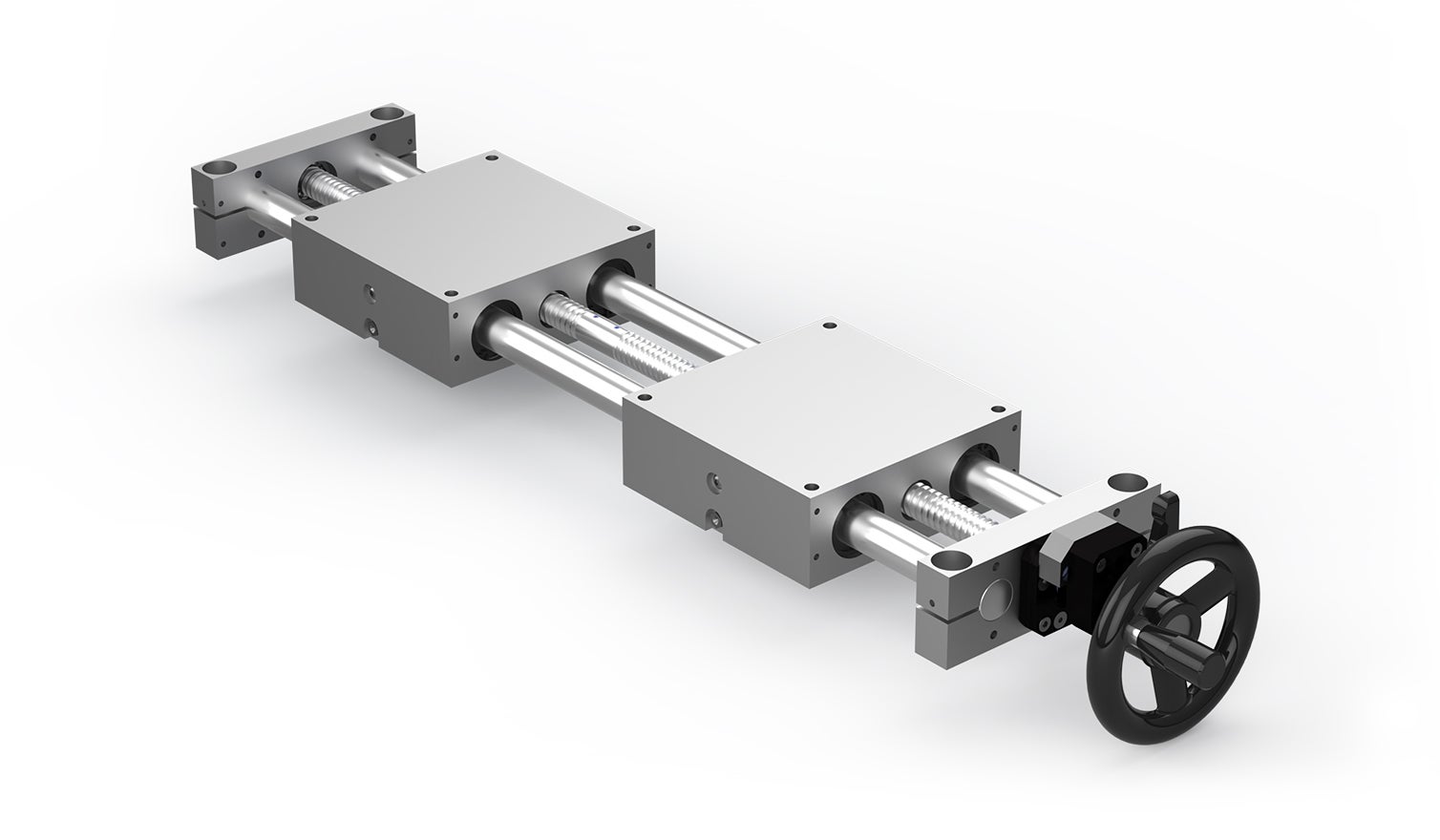

Hand wheel with locking device- WL

Locking device is recommended for all hand driven units with ball screw

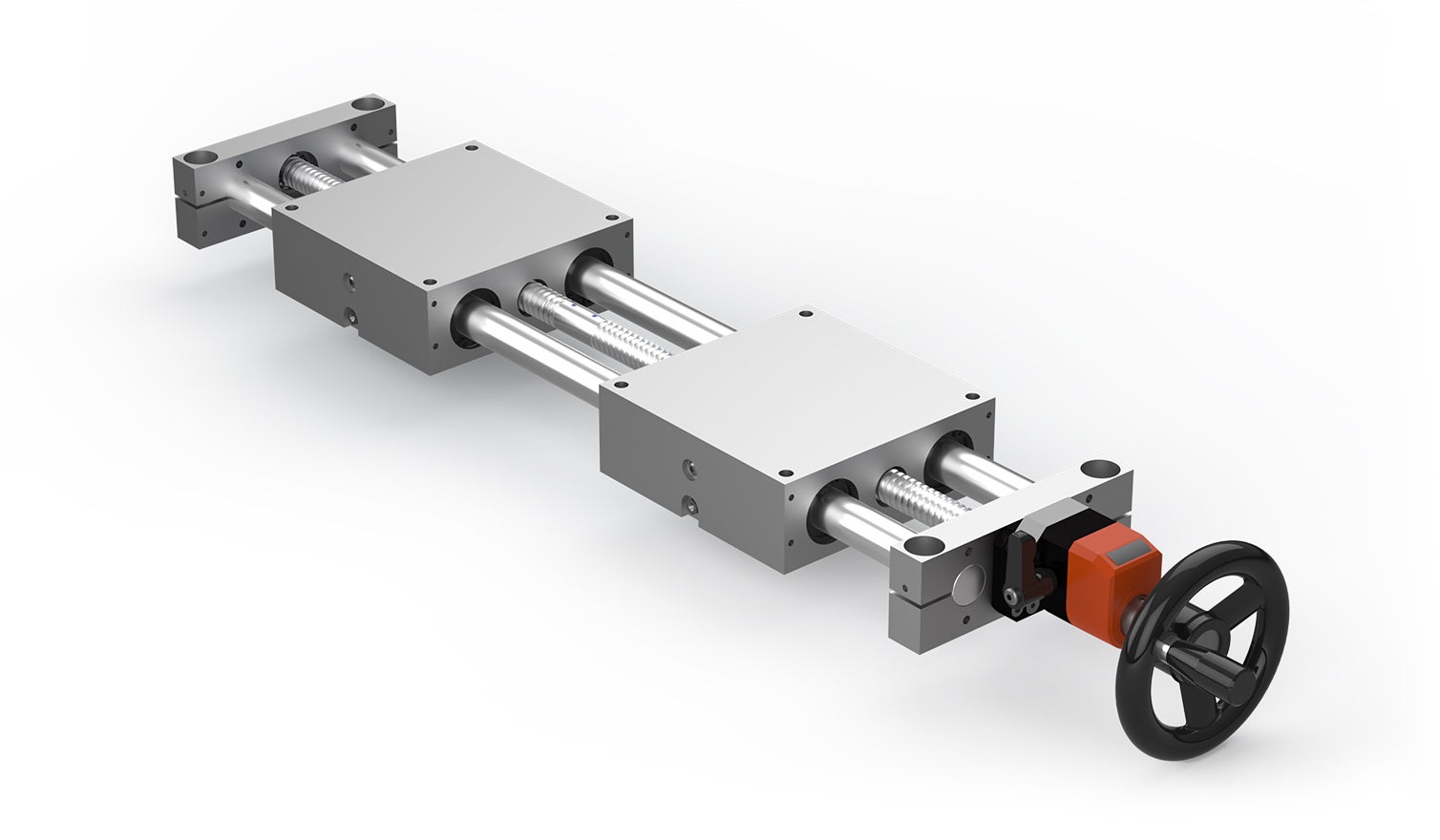

Hand wheel with locking device and position indicator- WIL

Locking device is recommended for all hand driven units with ball screw
Bellow

Bellow that protects against dust and dirt
Magnet and rail for end/position switches

For linear unit QME
STOCK ITEM

Position switch

Precise readjustment, all-electronically, vibration resistant, high protection class
Motor flange and coupling or timing belt transmission

For Linear unit QME
