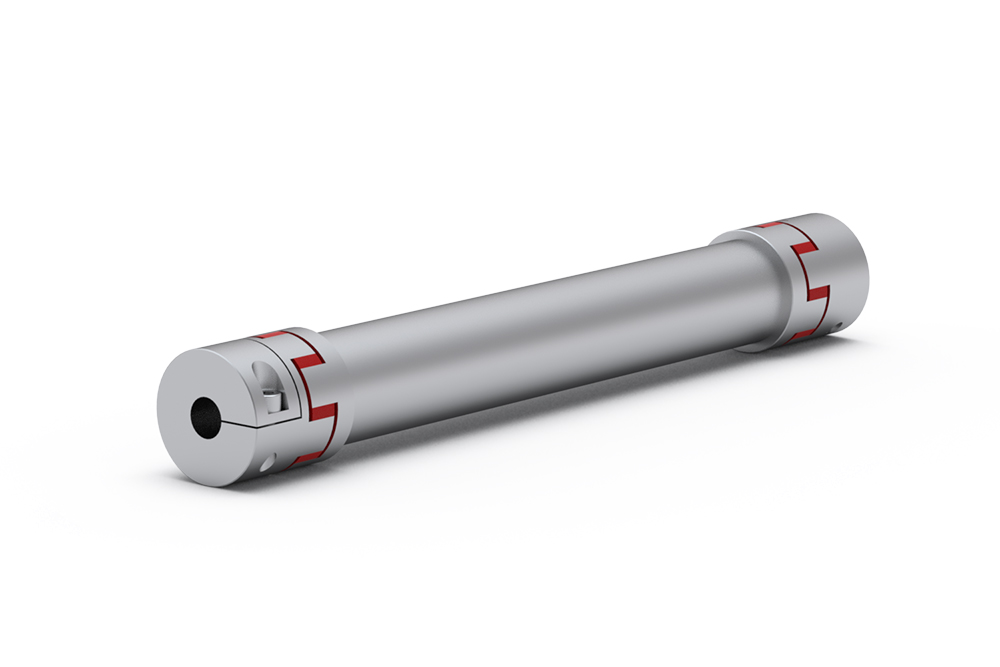

Synchronisation Shaft OSR

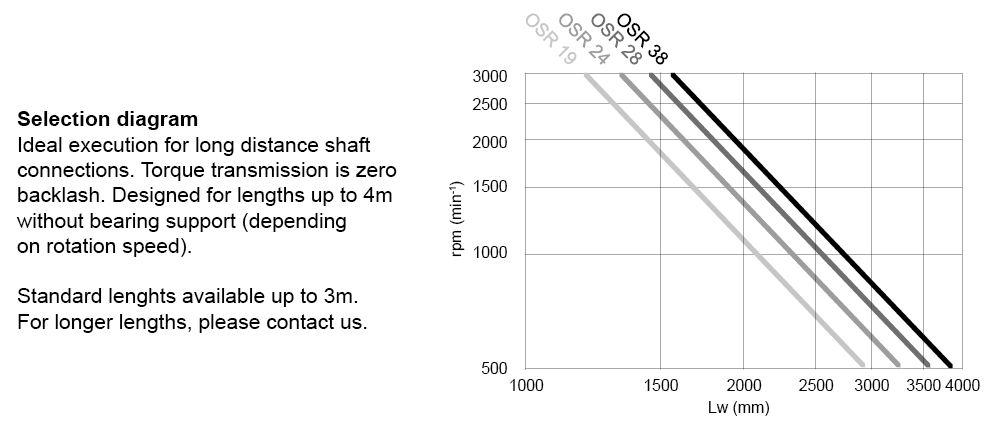

For longer distances bearing supports needed, please contact Rollco.
Installation:
The overall length Lt is best determined as the distance between shaft ends - length Lw plus 2x dimension H.
For CAD-files contact Rollco.
Dimensions in mm.
Explanations to the table below:
Ms = Screw tightening torque (Nm)
MT = Maximum transmissible torque (Nm)
CT = Torsional rigidity per meter (Nm/rad)
Installation:
The overall length Lt is best determined as the distance between shaft ends - length Lw plus 2x dimension H.
For CAD-files contact Rollco.
Dimensions in mm.
Explanations to the table below:
Ms = Screw tightening torque (Nm)
MT = Maximum transmissible torque (Nm)
CT = Torsional rigidity per meter (Nm/rad)
Lataa PDF
code.product.loadingpdf
+
Lisää PDF-luetteloon
Product Information
| Designation | Select all | Lead Time * | CT | D | E | e | H | I | L | M | t | Weight | Ms | MT | ød min. | ød max. | Lw min. | Lt | dR | Moment of inertia (10⁻⁶kg*m²) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 1630 Nm/rad | 47 | 40 | 15 | 25 | 13 | 53,50 | 16 | 12 | 0,30 + 0,00058 * Lw kg | 10 Nm | 39 Nm | 10 | 20 | 82 | On request | 36 | 66,0 + 0,1679 * Lw |
|
||
|
|
2 | 3980 Nm/rad | 57 | 55 | 20,80 | 30 | 16 | 63 | 18 | 14 | 0,62 + 0,00091 * Lw kg | 10 Nm | 53 Nm | 10 | 28 | 96 | On request | 45 | 242 + 0,4099 * Lw |
|
||
|
|
2 | 7494 Nm/rad | 73 | 65 | 25 | 35 | 20 | 67 | 20 | 15 | 0,98 + 0,00112 * Lw kg | 25 Nm | 137 Nm | 14 | 35 | 110 | On request | 55 | 572 + 0,7717 * Lw |
|
||
|
|
2 | 14540 Nm/rad | 84 | 80 | 30 | 45 | 25 | 83,50 | 24 | 20 | 1,75 + 0,00140 * Lw kg | 25 Nm | 180 Nm | 15 | 45 | 138 | On request | 68 | 1522 + 1,4975 * Lw |
|
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
