Fixing System

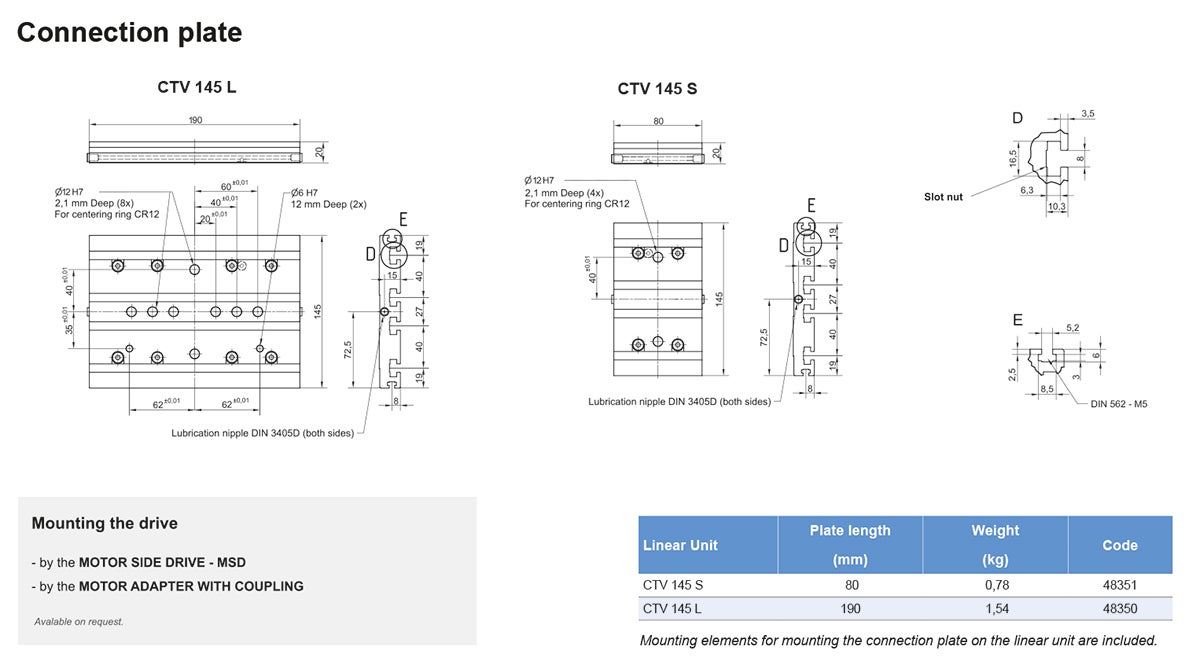

The linear units are mounted by using fixtures placed in the slot on the side of the profile

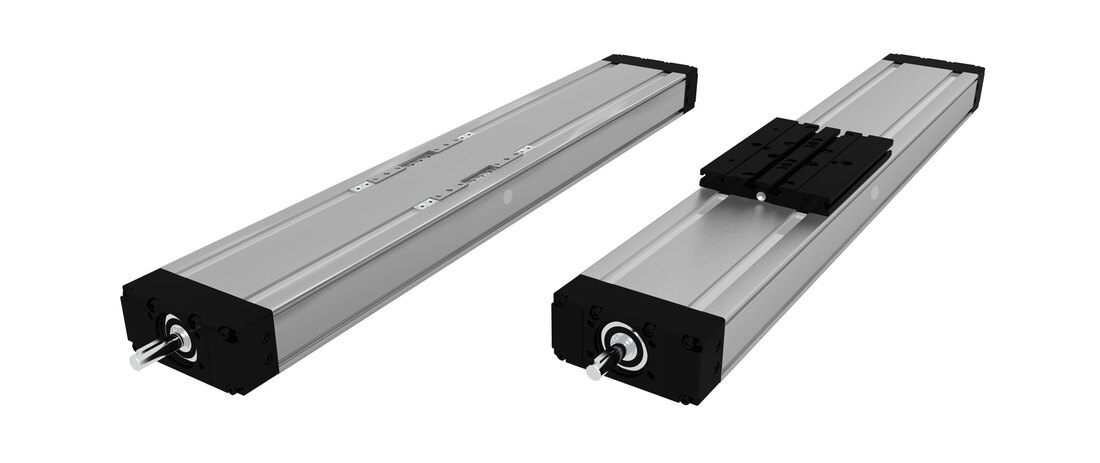

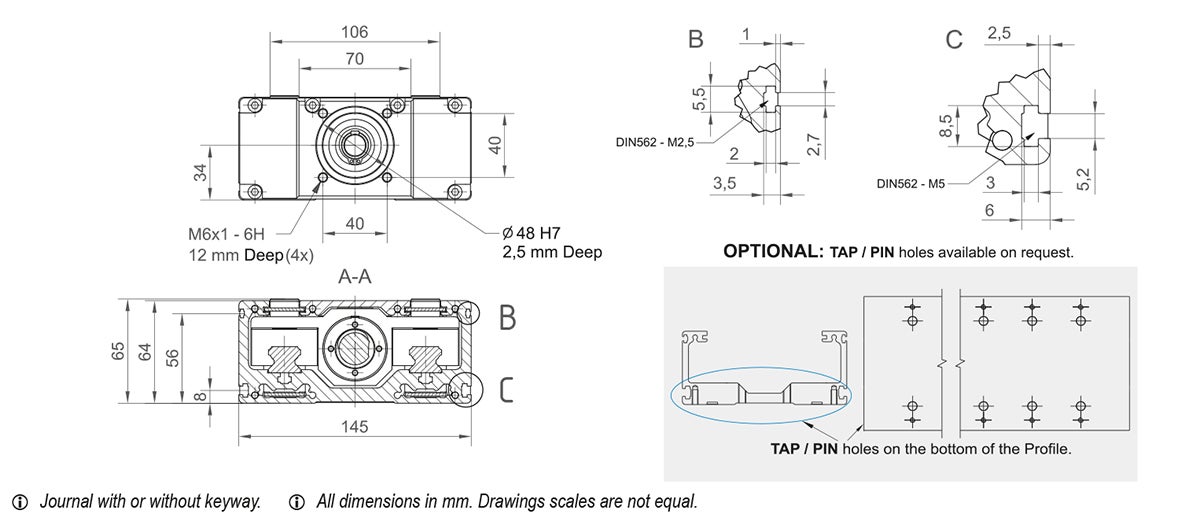

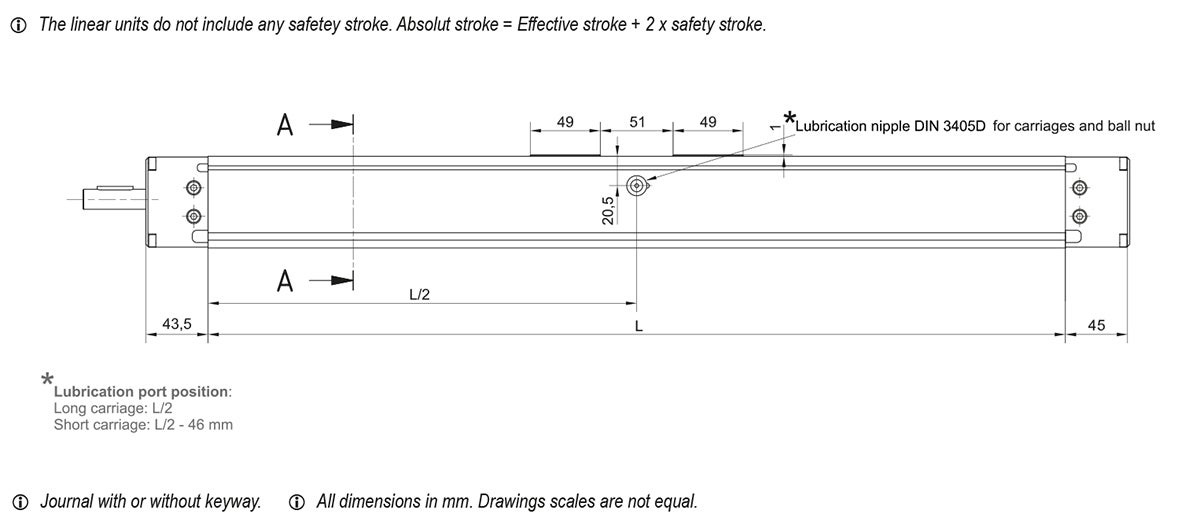

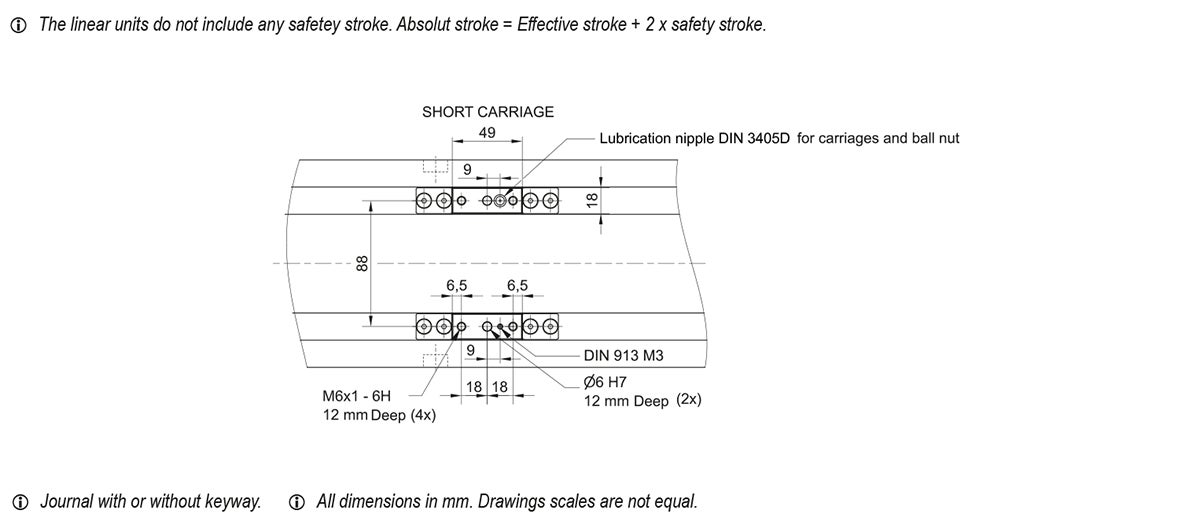

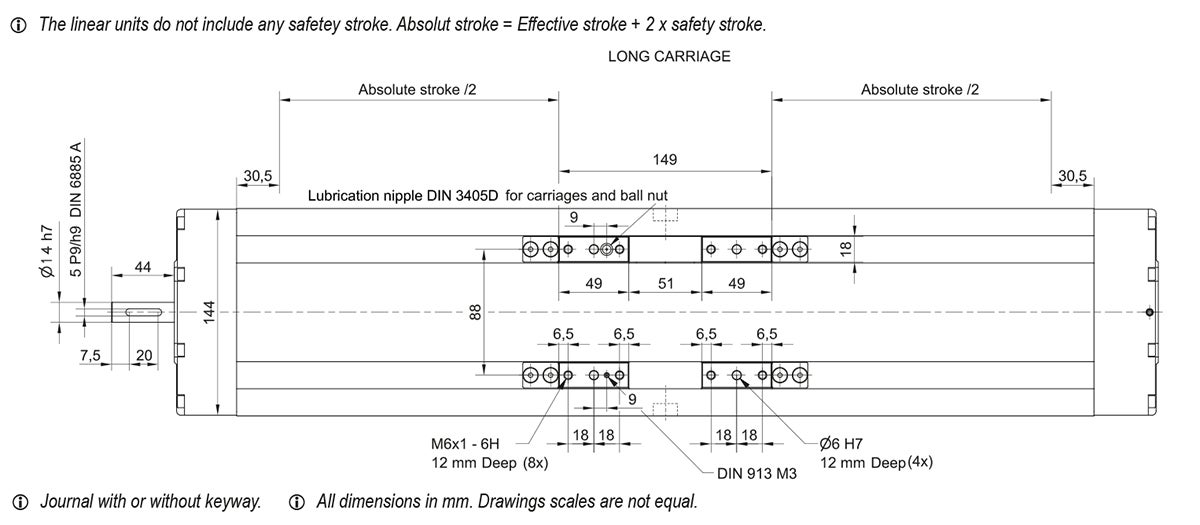

Linear Unit CTV 145
The CTV series describes linear units with a precision ball screw drive and two parallel, integrated, zero backlash rail guides. In the linear units CTV a precision ball screw, with tolerance class IS07 (IS05 on request), with reduced backlash of the ball nut is used.
Two parallel circulating antistatic polyurethane sealing strips and an aluminum cover are ensuring to protect all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.
Read more
Two parallel circulating antistatic polyurethane sealing strips and an aluminum cover are ensuring to protect all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.
Product Information

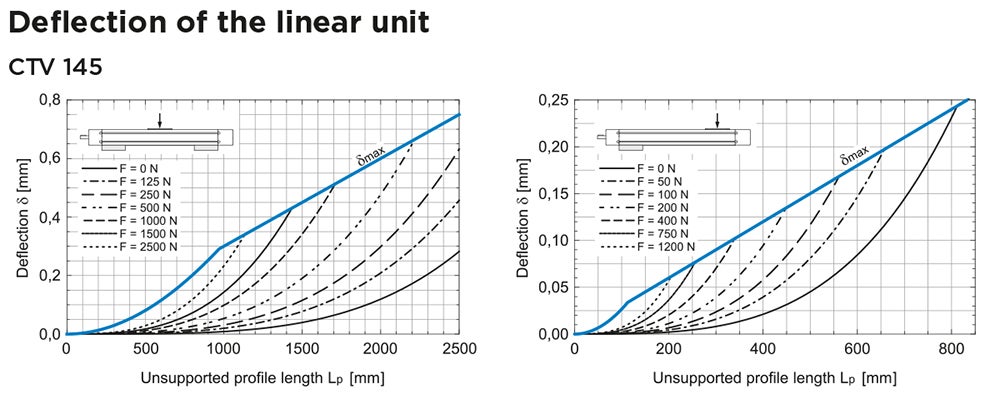

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 20
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Carriage Length Lv (mm) | Dynamic Moment Mx (Nm) | Dynamic Moment My (Nm) | Dynamic Moment Mz (Nm) | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Max. Permissible Loads Forces Fpy (N) | Max. Permissible Loads Forces Fpz (N) | Max. Permissible Loads Moments Mpx (Nm) | Max. Permissible Loads Moments Mpy (Nm) | Max. Permissible Loads Moments Mpz (Nm) | Moved Mass (kg) | Max. Length Lmax (mm) | Max. Stroke (mm) | Min. Stroke (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 49 | 1500 | 260 | 520 | 34200 | 60000 | 8930 | 15320 | 674 | 260 | 180 | 1.19 | 1800 | 1690 | 55 | |||
|
|
|
2 | 49 | 1500 | 260 | 520 | 34200 | 60000 | 8930 | 15320 | 674 | 260 | 180 | 1.19 | 1800 | 1690 | 55 | |||
|
|
|
2 | 49 | 1500 | 260 | 520 | 34200 | 60000 | 8930 | 15320 | 674 | 260 | 180 | 1.19 | 1800 | 1690 | 55 | |||
|
|
|
2 | 49 | 1500 | 260 | 520 | 34200 | 60000 | 8930 | 15320 | 674 | 260 | 180 | 1.19 | 1800 | 1690 | 55 | |||
|
|
|
2 | 149 | 3005 | 3420 | 3420 | 68400 | 120000 | 17860 | 30680 | 1350 | 1700 | 893 | 2.61 | 1800 | 1590 | 55 | |||
|
|
|
2 | 149 | 3005 | 3420 | 3420 | 68400 | 120000 | 17860 | 30680 | 1350 | 1700 | 893 | 2.61 | 1800 | 1590 | 55 | |||
|
|
|
2 | 149 | 3005 | 3420 | 3420 | 68400 | 120000 | 17860 | 30680 | 1350 | 1700 | 893 | 2.61 | 1800 | 1590 | 55 | |||
|
|
|
2 | 149 | 3005 | 3420 | 3420 | 68400 | 120000 | 17860 | 30680 | 1350 | 1700 | 893 | 2.61 | 1800 | 1590 | 55 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | Carriage version | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Dynamic Moment Mx (Nm) | Dynamic Moment My (Nm) | Dynamic Moment Mz (Nm) | Max. Permissible Loads Forces Fpy (N) | Max. Permissible Loads Forces Fpz (N) | Max. Permissible Loads Moments Mpx (Nm) | Max. Permissible Loads Moments Mpy (Nm) | Max. Permissible Loads Moments Mpz (Nm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
S2 (S) | 68400 | 120000 | 3000 | 34.2 × A (mm) | 34.2 × A (mm) | 17870 | 30640 | 1350 | 15.3 × A (mm) | 8.9 × A (mm) | |||
|
|
|
S2 (S) | 68400 | 120000 | 3000 | 34.2 × A (mm) | 34.2 × A (mm) | 17870 | 30640 | 1350 | 15.3 × A (mm) | 8.9 × A (mm) | |||
|
|
|
S2 (S) | 68400 | 120000 | 3000 | 34.2 × A (mm) | 34.2 × A (mm) | 17870 | 30640 | 1350 | 15.3 × A (mm) | 8.9 × A (mm) | |||
|
|
|
S2 (S) | 68400 | 120000 | 3000 | 34.2 × A (mm) | 34.2 × A (mm) | 17870 | 30640 | 1350 | 15.3 × A (mm) | 8.9 × A (mm) | |||
|
|
|
S2 (L) | 68400 | 120000 | 3000 | 34.2 × A (mm) | 34.2 × A (mm) | 17870 | 30640 | 1350 | 15.3 × A (mm) | 8.9 × A (mm) | |||
|
|
|
S2 (L) | 68400 | 120000 | 3000 | 34.2 × A (mm) | 34.2 × A (mm) | 17870 | 30640 | 1350 | 15.3 × A (mm) | 8.9 × A (mm) | |||
|
|
|
S2 (L) | 68400 | 120000 | 3000 | 34.2 × A (mm) | 34.2 × A (mm) | 17870 | 30640 | 1350 | 15.3 × A (mm) | 8.9 × A (mm) | |||
|
|
|
S2 (L) | 68400 | 120000 | 3000 | 34.2 × A (mm) | 34.2 × A (mm) | 17870 | 30640 | 1350 | 15.3 × A (mm) | 8.9 × A (mm) |

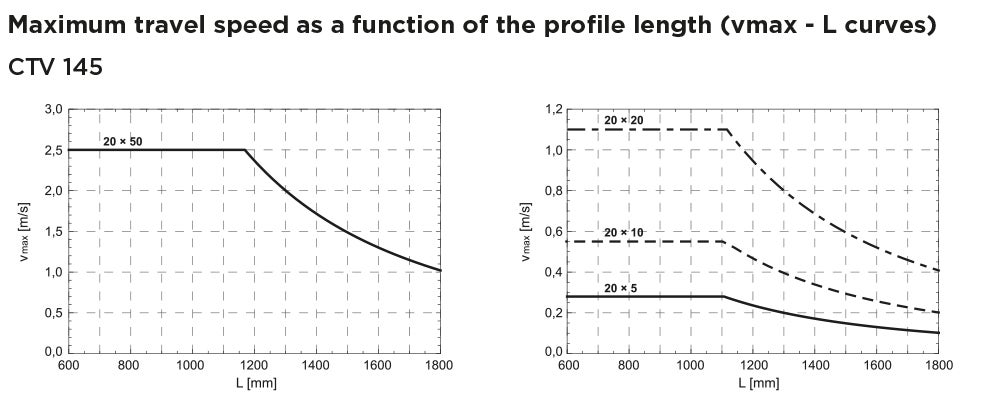

| Designation | Select all | CAD | Compare | Get quote | Max. Travel Speed (m/s) | Max. Rotational Speed (rev/min) | Max. Drive Torque Ma (Nm) | Lead Constant (mm/rev) | No Load Torque Carriage S (Nm) | No Load Torque Carriage L (Nm) | Ball Screw (d x l) | Max. Repeatability Precision Standard ISO7 | Max. Repeatability Precision ISO5 | Dynamic Load Capacity BS Ca (N) | Max. Axial Load Fx (N) | Planar Moment of Inertia ly (cm⁴) | Planar Moment of Inertia lz (cm⁴) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
0.28 | 3300 | 11,9 (w. keyway), 13 (w.o keyway) | 5 | 0.30 × nc | 0.35 × nc | 20 × 5 | ± 0.02 | ± 0.01 | 14800 | 14800 | 85.3 | 682.3 | |||
|
|
|
0.55 | 3300 | 11,9 (w. keyway), 24,5 (w.o keyway) | 10 | 0.32 × nc | 0.37 × nc | 20 × 10 | ± 0.02 | ± 0.01 | 15900 | 13850 | 85.3 | 682.3 | |||
|
|
|
1.1 | 3300 | 11,9 (w. keyway), 24,5 (w.o keyway) | 20 | 0.45 × nc | 0.50 × nc | 20 × 20 | ± 0.02 | ± 0.01 | 16250 | 6930 | 85.3 | 682.3 | |||
|
|
|
2.5 | 3300 | 11,9 (w. keyway), 24,5 (w.o keyway) | 50 | 0.80 × nc | 0.85 × nc | 20 × 50 | ± 0.02 | ± 0.01 | 13000 | 2770 | 85.3 | 682.3 | |||
|
|
|
0.28 | 3300 | 11,9 (w. keyway), 13 (w.o keyway) | 5 | 0.30 × nc | 0.35 × nc | 20 × 5 | ± 0.02 | ± 0.01 | 14800 | 14800 | 85.3 | 682.3 | |||
|
|
|
0.55 | 3300 | 11,9 (w. keyway), 24,5 (w.o keyway) | 10 | 0.32 × nc | 0.37 × nc | 20 × 10 | ± 0.02 | ± 0.01 | 15900 | 13850 | 85.3 | 682.3 | |||
|
|
|
1.1 | 3300 | 11,9 (w. keyway), 24,5 (w.o keyway) | 20 | 0.45 × nc | 0.50 × nc | 20 × 20 | ± 0.02 | ± 0.01 | 16250 | 6930 | 85.3 | 682.3 | |||
|
|
|

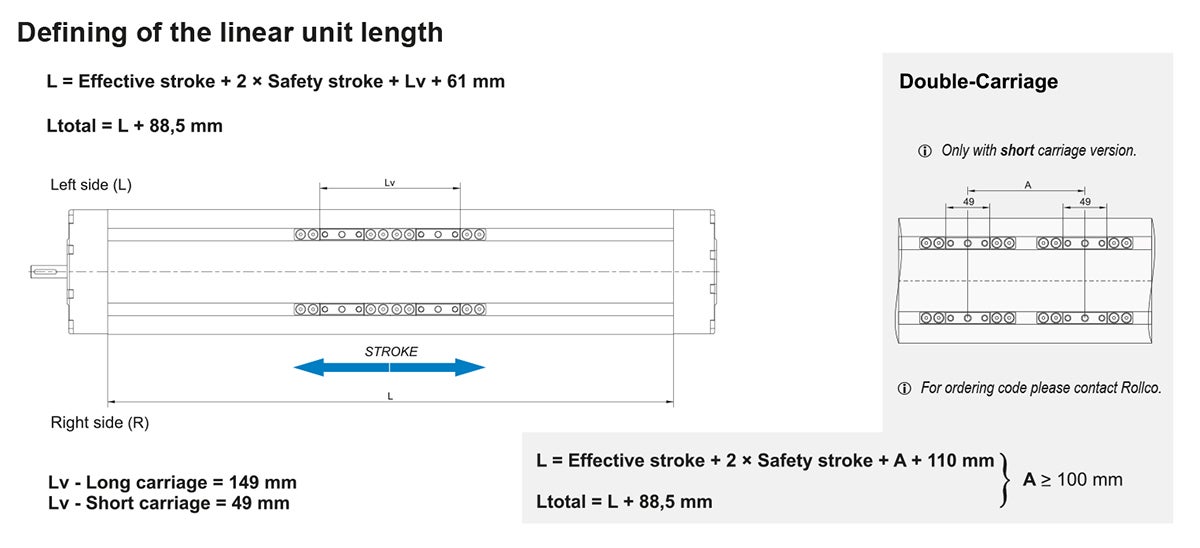

2.5 | 3000 | 11,9 (w. keyway), 24,5 (w.o keyway) | 50 | 0.80 × nc | 0.85 × nc | 20 × 50 | ± 0.02 | ± 0.01 | 13000 | 2770 | 85.3 | 682.3 |
| Designation | Select all | CAD | Compare | Get quote | Ball Screw (d x l) | Mass of Linear Unit (kg) | Mass Moment of Inertia (10⁻⁵ kg m²) | Planar Moment of Inertia ly (cm⁴) | Planar Moment of Inertia lz (cm⁴) | Moved Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
20 × 5 | 5.7 + 0.015 × (Abs. Stroke + (nc - 1) × A) + 1.19 × (nc - 1) | 3.04 + 0.013 × (Abs. Stroke + (nc - 1) × A) + 0.08 × (nc - 1) | 85.3 | 682.3 | 1.19 | |||
|
|
|
20 × 10 | 5.7 + 0.015 × (Abs. Stroke + (nc - 1) × A) + 1.19 × (nc - 1) | 3.27 + 0.013 × (Abs. Stroke + (nc - 1) × A) + 0.30 × (nc - 1) | 85.3 | 682.3 | 1.19 | |||
|
|
|
20 × 20 | 5.7 + 0.015 × (Abs. Stroke + (nc - 1) × A) + 1.19 × (nc - 1) | 4.17 + 0.013 × (Abs. Stroke + (nc - 1) × A) + 1.21 × (nc - 1) | 85.3 | 682.3 | 1.19 | |||
|
|
|
20 × 50 | 5.7 + 0.015 × (Abs. Stroke + (nc - 1) × A) + 1.19 × (nc - 1) | 10.50 + 0.013 × (Abs. Stroke + (nc - 1) × A) + 7.54 × (nc - 1) | 85.3 | 682.3 | 1.19 | |||
|
|
|
20 × 5 | 8.4 + 0.015 × (Abs. Stroke + (nc - 1) × A) + 2.61 × (nc - 1) | 4.43 + 0.013 × (Abs. Stroke + (nc - 1) × A) + 0.17 × (nc - 1) | 85.3 | 682.3 | 2.61 | |||
|
|
|
20 × 10 | 8.4 + 0.015 × (Abs. Stroke + (nc - 1) × A) + 2.61 × (nc - 1) | 4.92 + 0.013 × (Abs. Stroke + (nc - 1) × A) + 0.66 × (nc - 1) | 85.3 | 682.3 | 2.61 | |||
|
|
|
20 × 20 | 8.4 + 0.015 × (Abs. Stroke + (nc - 1) × A) + 2.61 × (nc - 1) | 6.91 + 0.013 × (Abs. Stroke + (nc - 1) × A) + 2.64 × (nc - 1) | 85.3 | 682.3 | 2.61 | |||
|
|
|
20 × 50 | 8.4 + 0.015 × (Abs. Stroke + (nc - 1) × A) + 2.61 × (nc - 1) | 20.79 + 0.013 × (Abs. Stroke + (nc - 1) × A) + 16.53 × (nc - 1) | 85.3 | 682.3 | 2.61 |
-
-
