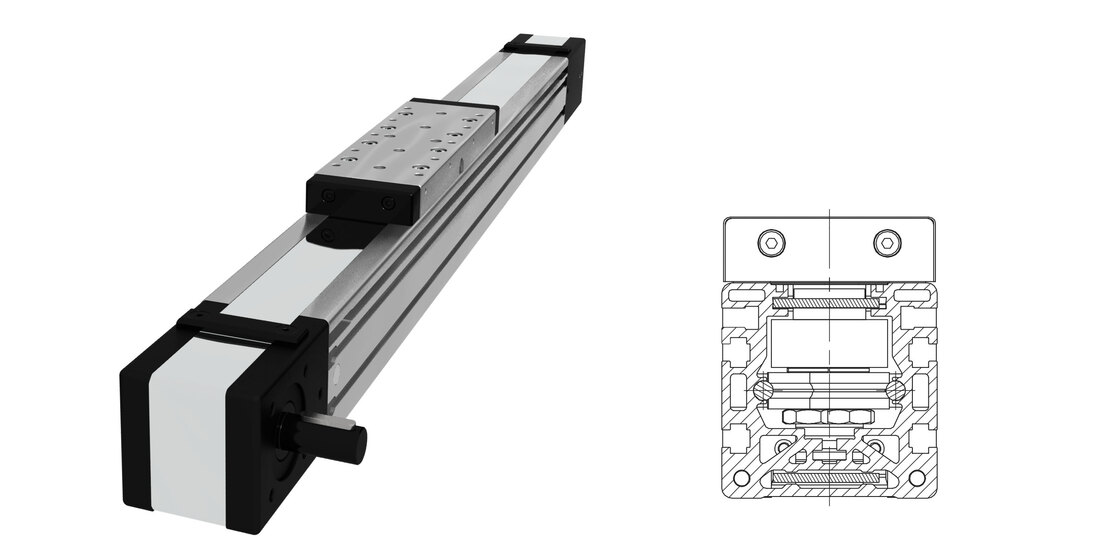

Linear Unit MRJ 80

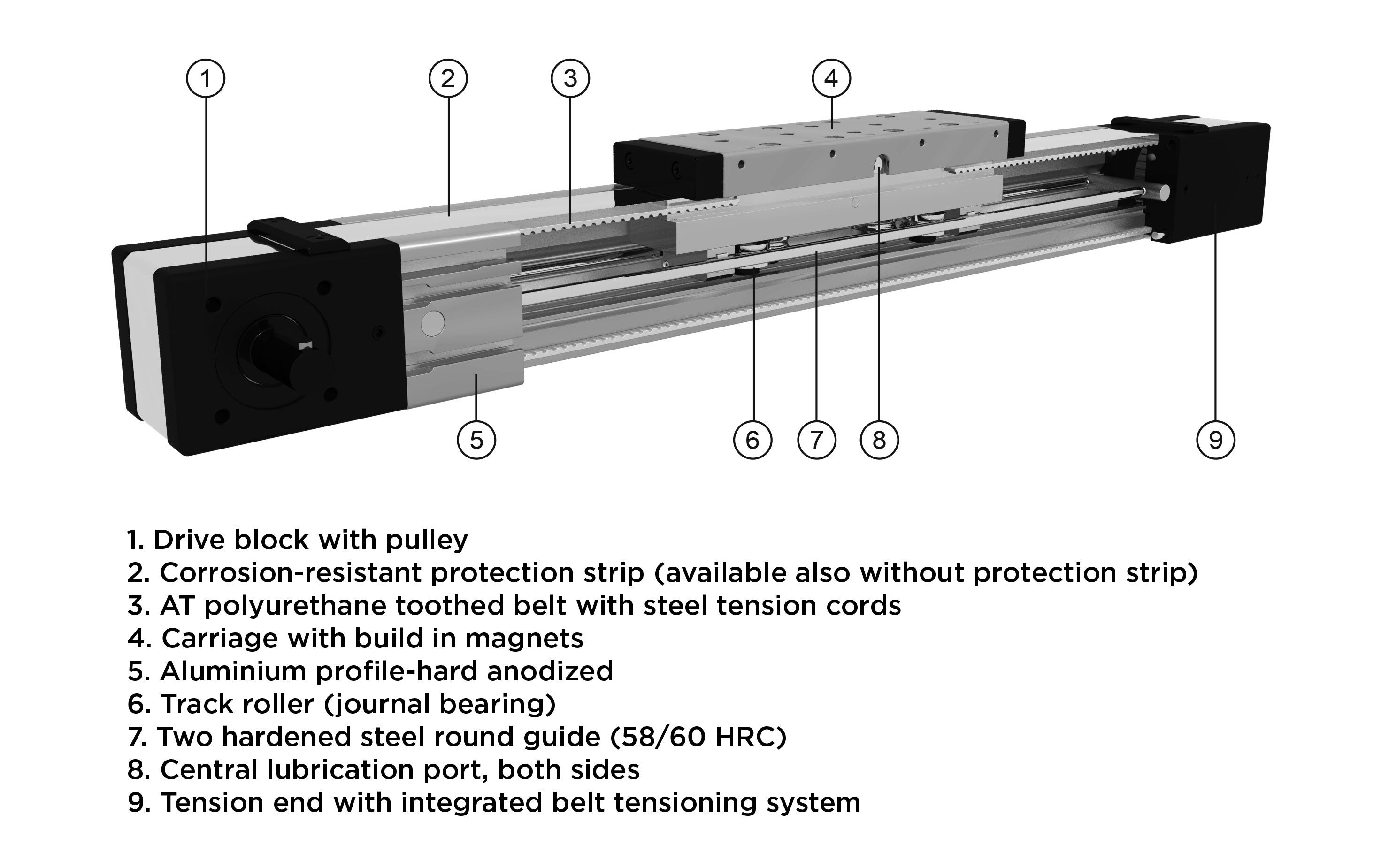

The MRJ linear units have toothed belt drive and compact dimensions to provide high performance features such as high speed and good accuracy. For very high speeds, up to 10 m/s, the track rollers (journal bearings) of the type MRJ are particularly suitable.

The unit MRJ have a pre-tensioned steel reinforced AT polyurethane timing toothed belt.
In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.

All parts in the profile are protected from dust and other contaminations. As corrosion-resistant protection strip is available as option.

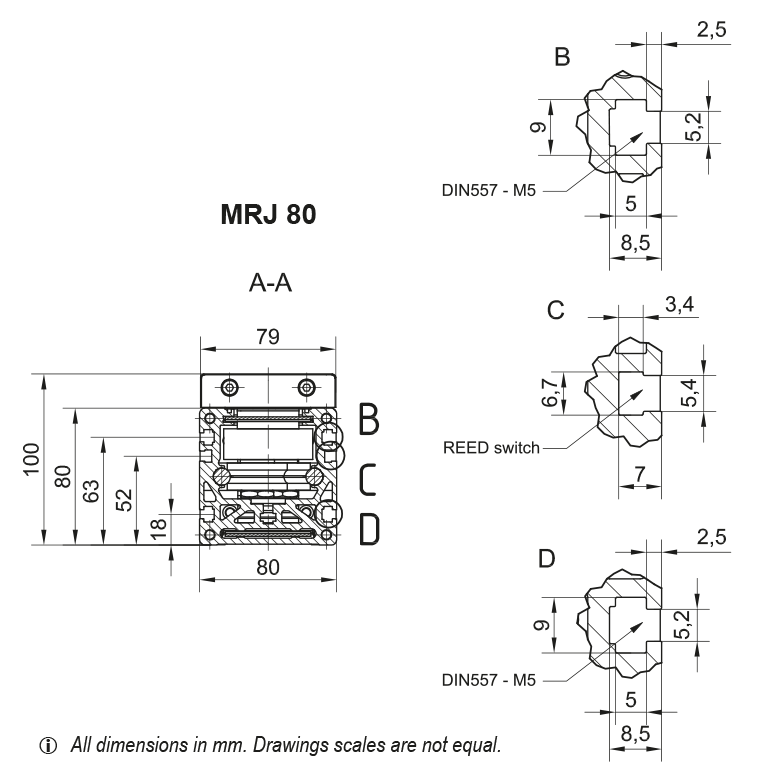

Dimensions in mm.
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

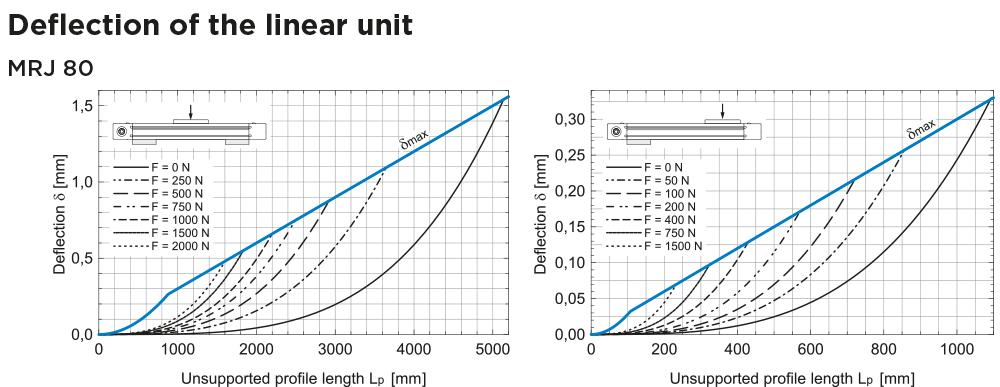

Modulus of elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%
Designation Select all Lead Time * Carriage Length Lv Load Capacity Cy (N) Load Capacity Cz (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Moved Mass (kg) Max. Repeatability (mm) Max. length Lmax Max. stroke Min. stroke CAD Compare
2 260 17100 9000 198 511 1145 17100 9000 3400 1760 39 101 228 2.73 ± 0.08 6000 5698 0
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Carriage version Load Capacity Cy (N) Load Capacity Cz (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) CAD Compare
L2 34200 18000 396 9.0 * A (mm) 17.1 * A (mm) 6800 3530 78 1.8 * A (mm) 3.4 * A (mm)
Get quote
Designation Select all Max. Travel Speed (m/s) Max. Drive Torque Ma (Nm) No Load Torque with Strip (Nm) No Load Torque without Strip (Nm) Pulley Drive Ratio (mm/rev) Pulley diameter Belt type Belt width Max. Force Transmitted by Belt (N) Specific Spring Constant Cspec (N) Min. stroke Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴ CAD Compare
10 29.4 1.4 1.1 210 66.84 AT5 50 880 960000 0 129 .1 173.4
Get quote
Designation Select all Carriage Length Lv Mass of Linear Unit (kg) Mass moment of inertia (10⁻⁵ kg * m²) Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴ Moved Mass (kg) CAD Compare
260 8.2 + 0.0075 * Stroke (mm) 424.4 + 0.0391 * Stroke (mm) 129 .1 173.4 2.73
