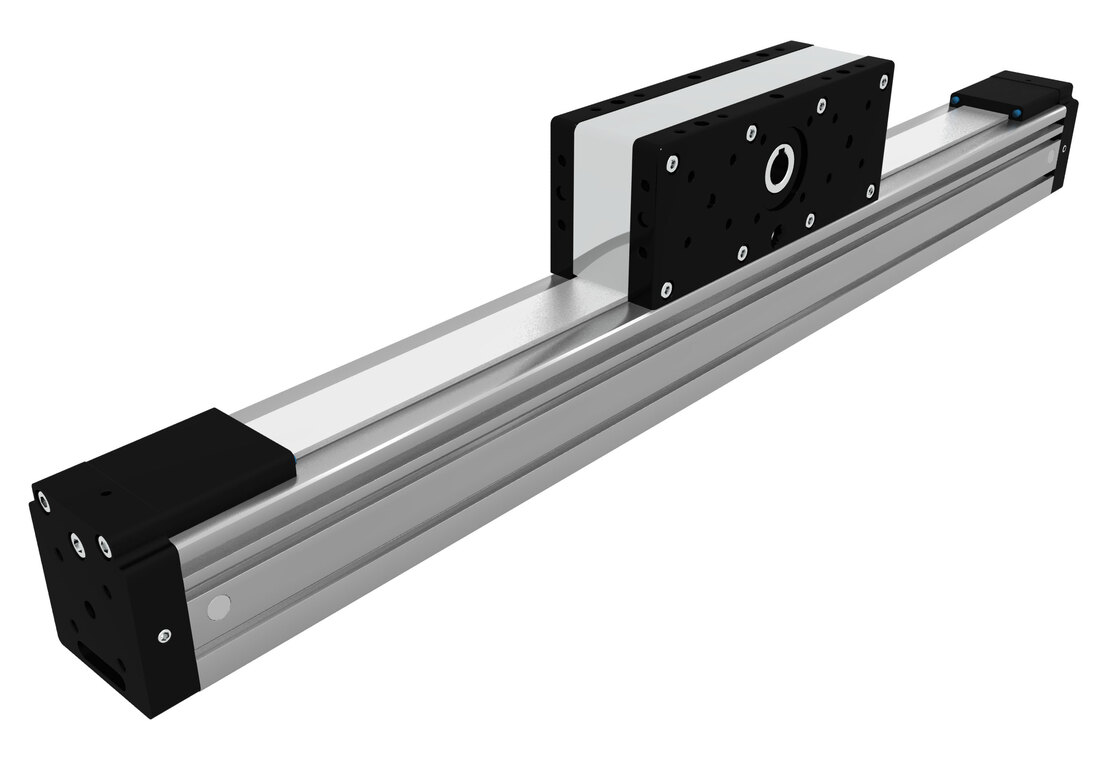

Linear Unit MTJZ 110

The MTJZ series contains Z-axis linear units with toothed belt drive, integrated ball rail system and compact dimensions. This linear units provide high performance features such as, high speed, good accuracy and repeatability by vertical applications.

In the linear units MTJZ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.

The in the profile slot driving timing belt protects all the parts in the profile from dust and other contaminations. The drive block provides the possibility to attach a motor or gearbox housing and additional accessories on it.

For CAD-files please contact Rollco.

Dimensions in mm.
Download PDF

Product Information

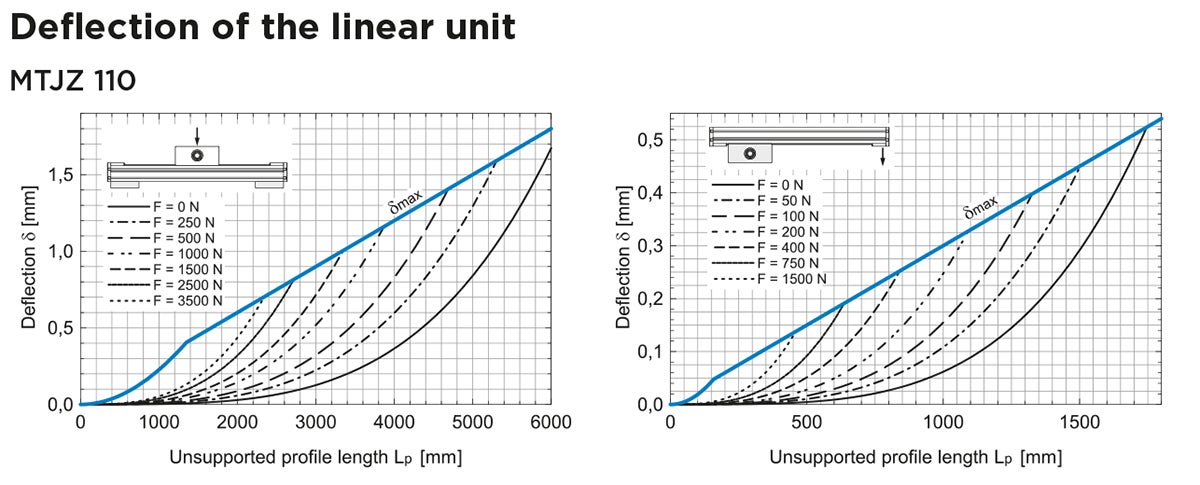

Modulus of elasticity: E = 70000 N / mm2
Operating temperature: 0°C ~ +60°C For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%

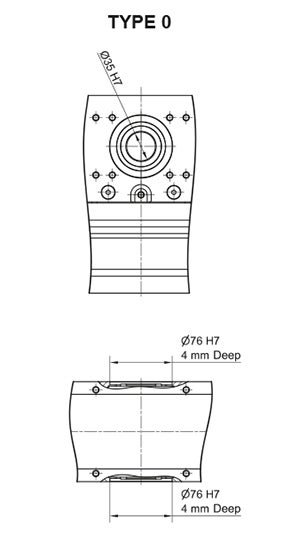

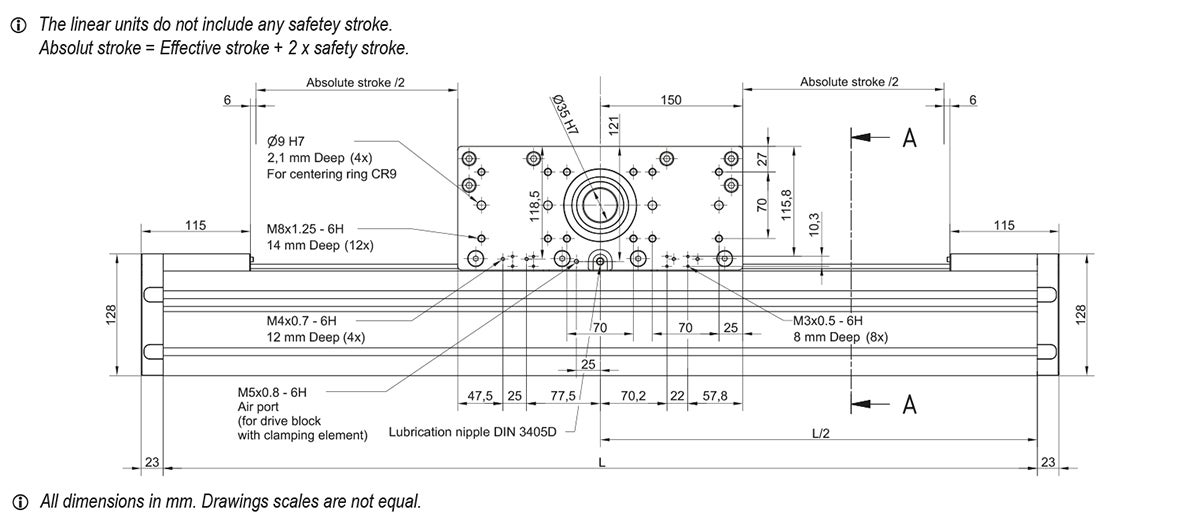

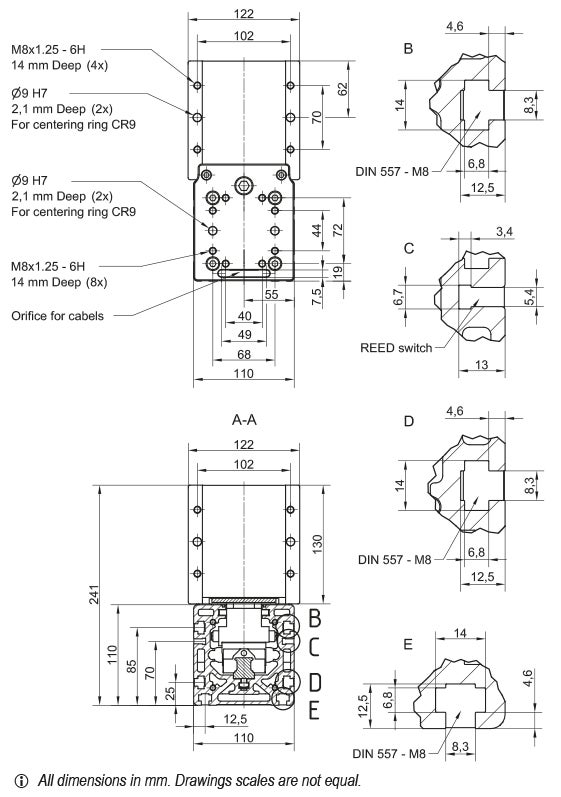

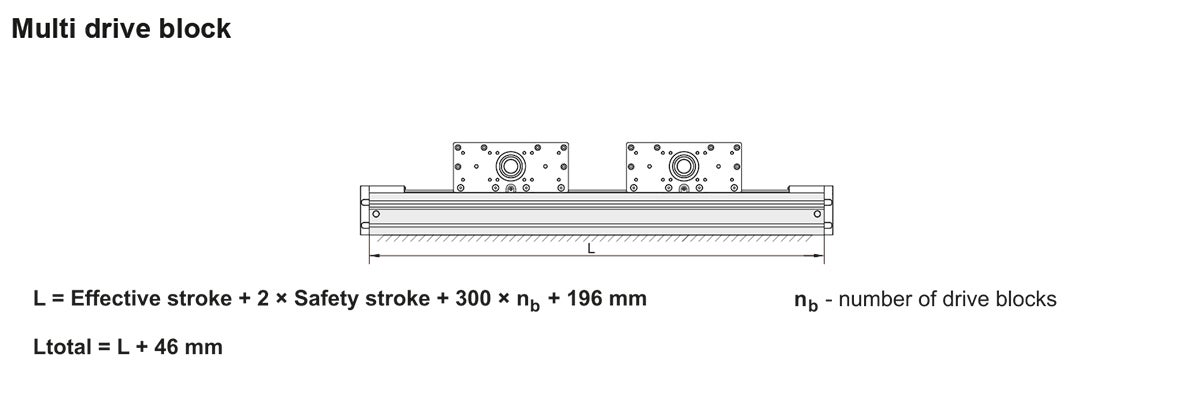

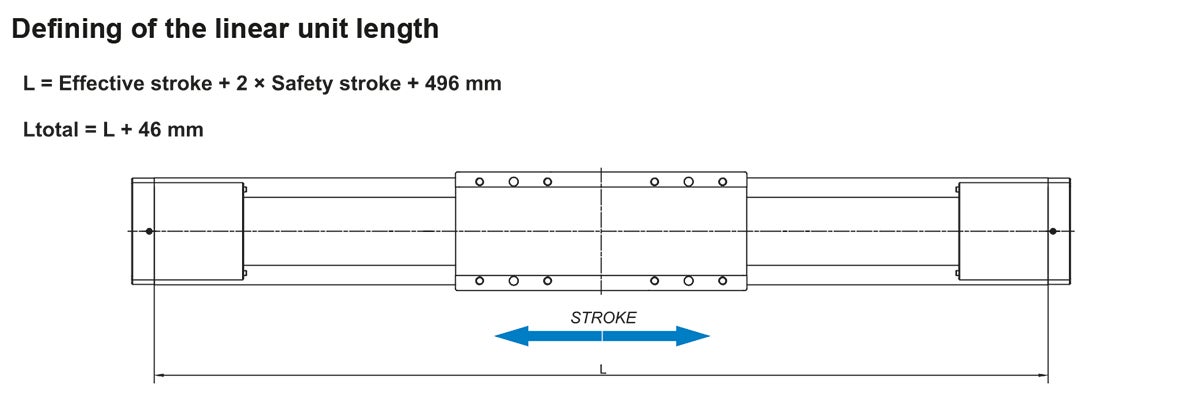

Technical Drawing
Designation Select all Lead Time * Drive block length Lv Dynamic Load Capacity C Static Load Capacity C0 Dynamic moments Mx Dynamic moments My Dynamic moments Mz Mass of drive block Max. permissible loads Forces Fpy Max. permissible loads Forces Fpz Max. permissible loads Moments Mpx Max. permissible loads Moments Mpy Max. permissible loads Moments Mpz Max. repeatability Max length version 1 (Lmax) Max length version 2 (Lmax) Max. stroke version 1 Max. stroke version 2 Min. stroke
2 300 49600 N 85000 N 630 Nm 3470 Nm 3470 Nm 11,3 kg 10000 N 14290 N 260 Nm 1000 Nm 700 Nm ± 0,08 1800 6000 1304 5504 65
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

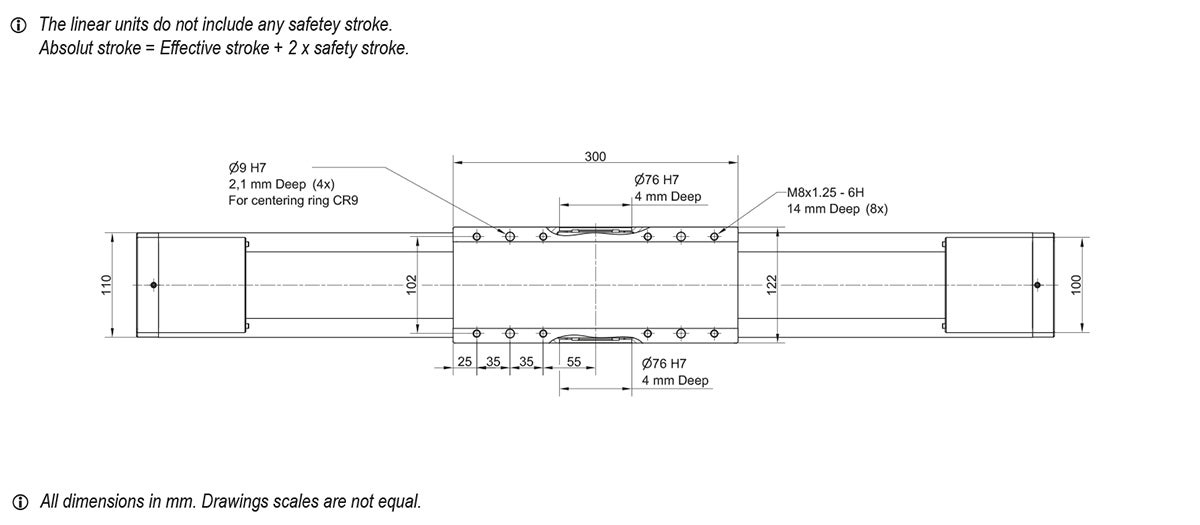

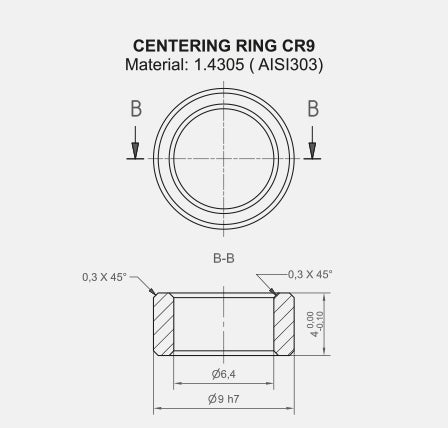

Additional Drawing 2
Designation Select all Max travel speed Max. drive torque Pulley drive ratio Pulley diameter Min. stroke Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴ Belt type Belt width Max. force transmitted by belt Specific spring constant Cspec
5 m/s 110 Nm 300 mm/rev 95,49 65 513 620 AT10 70 2300 N 2450000 N
Get quote

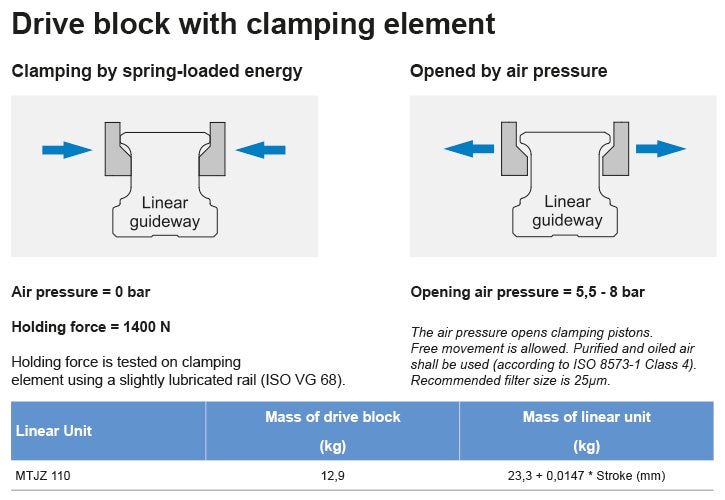

Additional Drawing 2
Designation Select all Mass of linear unit Mass moment of inertia of drive block (10⁻⁴ kg * m₂) Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴
21,7 + 0,0147 * Stroke (mm) kg 273,0 + 0,3358 * Stroke (mm) 513 620
