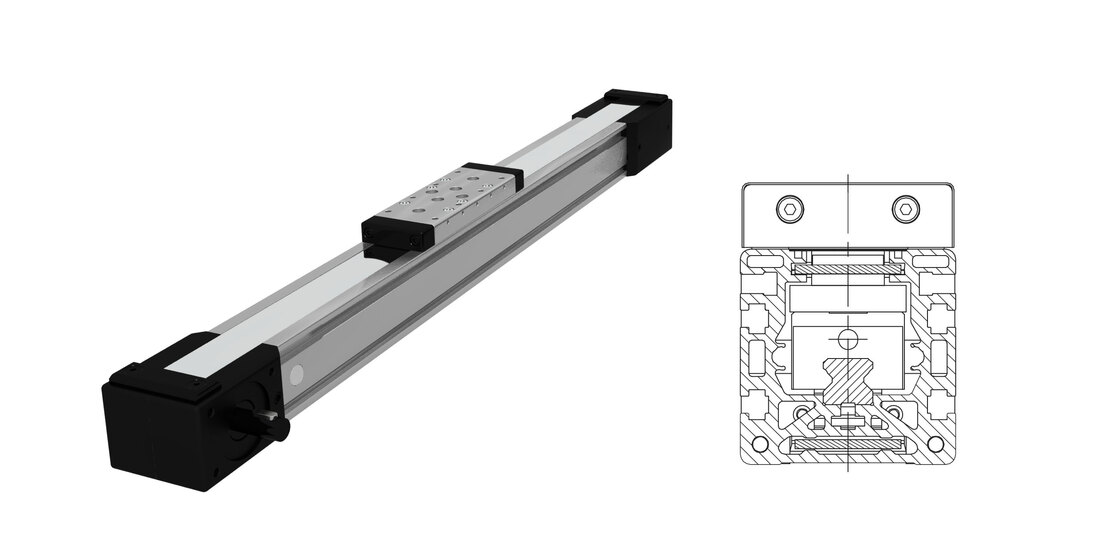

Linear Unit MTJ 65
The MTJ linear units have toothed belt drive and compact dimensions to provide high performance features such as high speed and good accuracy
The unit MTJ have a pre-tensioned steel reinforced AT polyurethane timing toothed belt.
In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.
All parts in the profile are protected from dust and other contaminations. As corrosion-resistant protection strip is available as option.
Contact Rollco for CAD-files.
The unit MTJ have a pre-tensioned steel reinforced AT polyurethane timing toothed belt.
In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.
All parts in the profile are protected from dust and other contaminations. As corrosion-resistant protection strip is available as option.
Contact Rollco for CAD-files.
Product Information

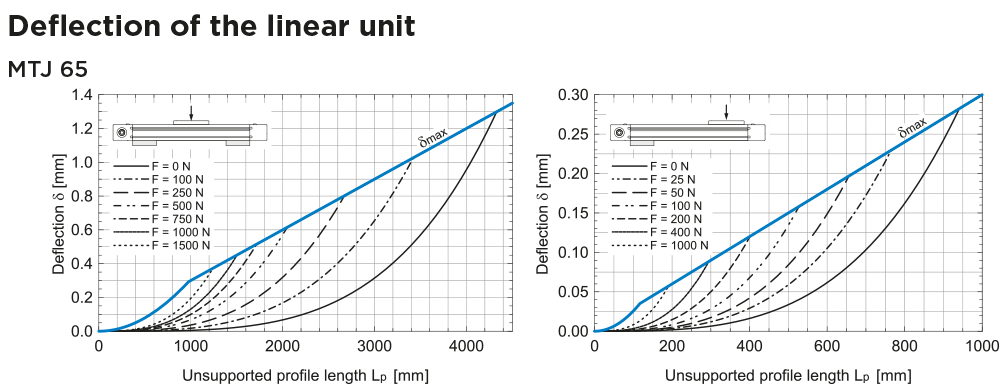

Modulus of elasticity: E = 70000 N / mm2
Operating temperature: 0°C ~ +60°C For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%
| Designation | Select all | Lead Time * | Carriage Length Lv | Load capacity Cy | Load capacity Cz | Dynamic moments Mx | Dynamic moments My | Dynamic moments Mz | Dynamic Load Capacity C | Static Load Capacity C0 | Max. permissible loads Forces Fpy | Max. permissible loads Forces Fpz | Max. permissible loads Moments Mpx | Max. permissible loads Moments Mpy | Max. permissible loads Moments Mpz | Moved mass | Max. repeatability | Max length Lmax | Max. stroke | Min. stroke | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 140 | / | / | 79 Nm | 59 Nm | 59 Nm | 9900 N | 17500 N | 3270 N | 5100 N | 34 Nm | 34 Nm | 34 Nm | 1 kg | ± 0,08 mm | 6000 | 5820 | 40 |
|
Get quote | |
|
|
2 | 190 | / | / | 158 Nm | 1025 Nm | 1025 Nm | 19800 N | 35000 N | 6540 N | 10190 N | 60 Nm | 530 Nm | 340 Nm | 1,45 kg | ± 0,08 mm | 6000 | 5770 | 40 |
|
Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
| Designation | Select all | Carriage version | Dyn. Load Capacity C | Stat. Load Capacity C0 | Dynamic Moment Mx | Dynamic Moment My | Dynamic Moment Mz | Max perm. Loads Forces Fpy | Max perm. Loads Moments Mpx | Max perm. Loads Moments Mpy | Max perm. Loads Moments Mpz | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
S2 | 19800 N | 35000 N | 158 Nm | 9,9 * A (mm) Nm | 9,9 * A (mm) Nm | 6540 N | 68 Nm | 5,1 * A (mm) Nm | 3,3 * A (mm) Nm |
|
Get quote | |
|
|
L2 | 39600 N | 70000 N | 316 Nm | 19,8 * A (mm) Nm | 19,8 * A (mm) Nm | 13080 N | 120 Nm | 10,2 * A (mm) Nm | 6,5 * A (mm) Nm |
|
Get quote |
| Designation | Select all | Max travel speed | Max. drive torque Ma | No load torque with strip | No load torque without strip | Pulley drive ratio | Pulley diameter | Belt type | Belt width | Max. force transmitted by belt | Specific spring constant Cspec | Min. stroke | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
6 m/s | 13,10 | 1,1 Nm | 0,8 Nm | 165 mm/rev | 52,52 | AT5 | 32 | 500 N | 600000 N | 40 | 59,70 | 74,40 |
|
Get quote | |
|
|
6 m/s | 13,10 | 1,2 Nm | 0,9 Nm | 165 mm/rev | 52,52 | AT5 | 32 | 500 N | 600000 N | 40 | 59,70 | 74,40 |
|
Get quote |
| Designation | Select all | Carriage Length Lv | Mass of linear unit | Mass moment of inertia (10⁻⁵ kg * m²) | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | Moved mass | ||
|---|---|---|---|---|---|---|---|---|---|
|
|
140 | 4 + 0,0055 * Stroke (mm) kg | 98,4 + 0,0154 * Stroke (mm) | 59,70 | 74,40 | 1 kg |
|
Get quote | |
|
|
190 | 4,6 + 0,0055 * Stroke (mm) kg | 130,1 + 0,0154 * Stroke (mm) | 59,70 | 74,40 | 1,45 kg |
|
Get quote |
-
-

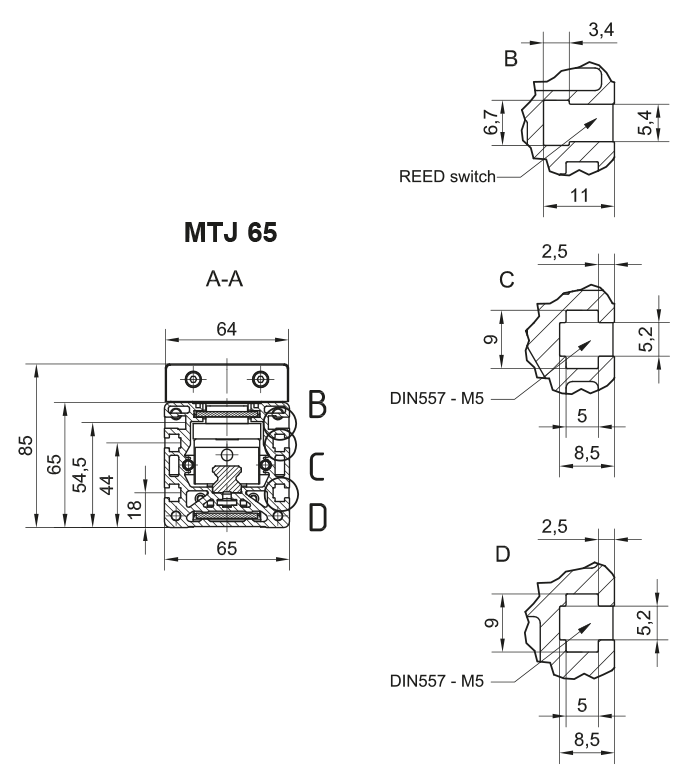

Fixing System
The linear units are mounted by using fixtures placed in the slot on the side of the profile -
-
-
-
-
-
-
-
-
-
-
-
-
